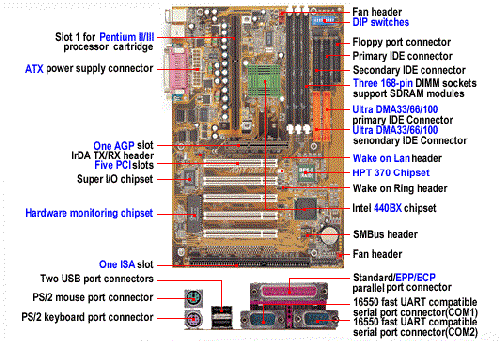

BE6-II V2.0 - ABIT
CPU 1. Supports Intel Pentium® III 450~1GHz processor cartridge based on 100MHzFSB 2. Supports Intel Pentium® II 233~450 MHz processor cartridge based on 66/100MHzFSB 3. Supports Intel CeleronTM 266~533MHz processor based on 66MHzFSB 4. Reserves support for future Intel Pentium® III processors Chipset 1. Intel®440BX chipset (82443BX and 82371EB) 2. Supports Advanced Configuration and Power Management Interface (ACPI) 3. Supports AGP 1X/2X (Sideband)3.3V device Ultra DMA 100 1. High Point HTP370 IDE Controller 2. Ultra DMA 100MB/Sec data transfer rate 3. RAID 0(stripping mode for boosting performance) 4. RAID 1 (mirroring mode for data security) 5. RAID 0 +1(stripping and mirroring) Memory 1. Three 168-pin DIMM sockets support SDRAM module 2. Supports up to 768MB MAX. (8, 16, 32, 64, 128,256MB SDRAM) 3. Supports ECC System BIOS 1. SOFT MENUTM III or DIP switches to set CPU parameters 2. Award Plug and Play BIOS version 6.0 3. Write-Protect Anti-Virus function by AWARD BIOS 4. Year 2000 Compliant Multi I/O Functions 1. Two Channels of Bus Master IDE Ports supporting up to four Ultra DMA 33/66/100 devices 2. Two Channels of Bus Master IDE Ports supporting up to four Ultra DMA 33 devices 3. PS/2 Keyboard and PS/2 Mouse Connectors 4. 1x Floppy Port (up to 2.88MB) 5. 1x Parallel Port (EPP/ECP) 6. 2x Serial Ports 7. 2x USB Connectors Miscellaneous 1. 1 AGP slot, 5 PCI slots and 1 ISA slot 2. Hardware monitoring 3. Keyboard/Mouse/Password and Hot Key multifunction Power On. 4. Built-in Wake on LAN/Wake on Ring header 5. Built-in IrDA TX/RX header 5. One Thermal Sensor Cable Included CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ABIT Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
