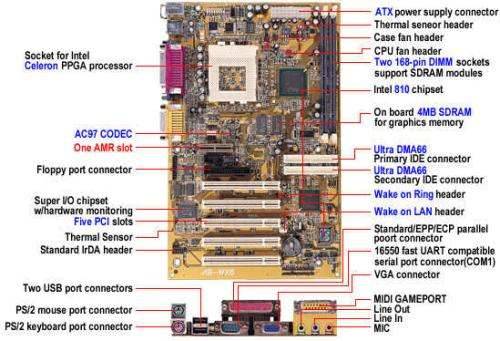

WX6 - ABIT
CPU 1. Supports Intel Celeron® Socket 370 processor (Based on 66/100MHz clock) Chipset 1. Intel 810 chipset supports 66/100MHz Front Side Bus 2. Supports Ultra DMA33/66 IDE protocol 3. Supports Advanced Configuration and Power Management Interface (ACPI) Memory 1. Two 168-pin DIMM sockets support SDRAM module 2. Supports up to 512MB (8, 16, 32, 64, 128,256MB SDRAM) Graphics 1. Chipset integrated AGP 2X 3D graphics accelerator 2. 100MHz Dynamic Display Memory Interface 3. On board 4MB SDRAM Graphics Memory Audio 1. AC' 97 2.1 codec on board 2.Software Audio controller integrated in ICH System BIOS 1. CPU SOFT MENUTM II eliminates the need for jumpers or DIP switches needed to set CPU parameters 2. Award Plug and Play BIOS supports APM, DMI and ACPI 3. Write-Protect Anti-Virus function by AWARD BIOS 4. 4M-bit Flash ROM 5. Year 2000 Compliant Muti I/O Functions 1. One Floppy Port (up to 2.88MB floppy drive) for two floppy devices 2. Two channels of bus Master IDE Ports supporting up to four Ultra DMA 33/66 devices 3. PS/2 Keyboard and PS/2 Mouse connectors 4. One Parallet Port 5. One Serial Ports 6. Two USB Connectors 7. IrDA TX/RX header 8. VGA connectors 9. Audio connector (Line-in,Line-out,Mic-in,and Game Port) Hardware monitoring 1. Hardware monitoring - Including fan speed, voltages, CPU and system environment temperature,and one Thermal header for other temperature monitoring 2. Built-in Thermal Sensors to detect CPU and System temperature Miscellaneous 1. ATX form factor 2. Five PCI slots and One AMR slot 3. Supports Keyboard and Mouse Power on 4. Supports Suspend to RAM(STR) function 5. Wake on LAN header 6. Wake on Ring header 7. Dimensions : 305*190mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ABIT Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
