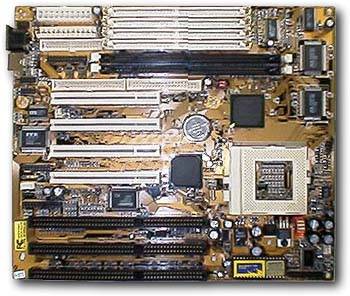

PM-9500 - AMPTRON
Intel 439TX chipset Supports Pentium P54C/P55C, Cyrix 6x86, 6x86L, 6x86MX, AMD K5/K6 and IDT C6 processors Supports CPU voltages of 3.5, 3.3, 3.0, 2.9, 2.8, and 2.5v Supports CPU clock speeds of 50/55/60/66/75 & 83MHz Supports up to 384MB of main memory Support EDO DRAM, FP DRAM and SDRAM memory Provides (4) 32-bit PCI and (3) 8/16-bit ISA local bus slots Onboard C-Media CMI8330 3D positional sound system Provides AT and ATX power connectors and ATX power features -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- FEATURES: Main Chipset Intel 430TX chipset Supports P54C/P55C, Cyrix 6x86, 6x86L, 6x86MX, AMD K5/K6 and IDT C6 processors Supports clock speeds of 50/55/60/66/75 & 83MHz Support CPU voltages of 3.5, 3.3, 2.9, 2.8 and 2.5v Memory Supports up to 384MB of main memory Supports EDO DRAM, Fast Page Mode DRAM and SDRAM memory modules Supports 256KB or 512KB Pipeline Burst cache memory Enhanced IDE Controller Supports up to (4) EIDE drives in two channels Supports PIO modes 0 - 4 and DMA mode 2 Onboard multi I/O chipset Supports (2) 16550 UART fast serial ports, (1) SPP, EPP/ECP parallel port and (1) high speed floppy drive controller with 1MB/s transfer rate Supports 2.88MB drives Supports PS/2 port Power Management Provides AT and ATX power connectors Supports Suspend Mode and Shutdown SMM/SMI power management with APM software Fully user configurable BIOS options BIOS AWARD modular BIOS for easy BIOS updates JUMPER SETTINGS AND HEADER PIN-OUTS: JUMPER PIN(s) FUNCTION JUMPER PIN(s) FUNCTION JP5 - DIMM Voltage 1-2 5v J6 - Clear CMOS Open Normal Operation 2-3 2.2v Closed Clear CMOS JP2 - Microphone Type Open Standard FAN1 - CPU Fan 1 Not Used Closed Special 2 12v 3 Ground J7 - Power/Suspend Open AT Power Closed ATX Power J1 - Sound Connector J2 - ATX Form Card JP3/JP8 - CD Audio (I/O) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
