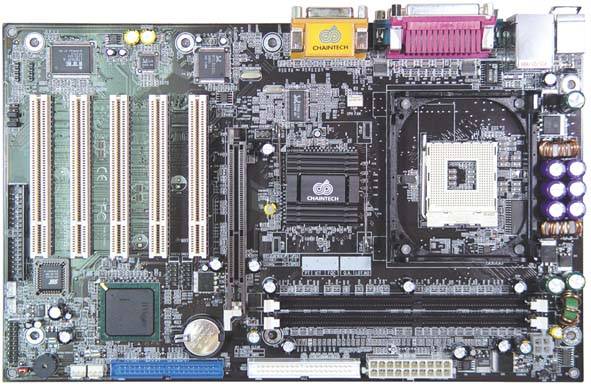

S845PE - CHAINTECH
Socket 478 Intel® Celeron/Pentium 4 400/533/800 (Supports Prescott CPU at 533MHz) BIOS Utility Manual Drivers for Motherboard Memory Compatibility list Feature Highlights Form Factor ATX (305mm x 190mm) CPU Supports Intel Socket 478 CPU with Hyper-Threading Technology Supports Intel Pentium4/Celeron system bus at 400/533/800MHz (Overclock to 800MHz) Supports Intel Prescott CPU at 533 MHz Chipset Intel 845PE + ICH4, supports Hyper-Threading Technology Main Memory Two 184-pin DDR DIMMs up to 2GB Supports PC1600/2100/2700/3200 DDR SDRAM modules (Overclock to DDR 400) Expansion Slots One 1.5V AGP slot for 4XAGP Five 32-Bit PCI slots (v2.2 compliant) Audio Subsystem With external high quality CMedia9739A 6-Channel AC'97 Codec Complete software driver supports for Windows OS Video Subsystem 4X AGP Ultra DMA IDE Ports support two IDE ports up to 4 ATAPI devices Supports PIO Mode 4 up to 16.6 MBps, Multi Mode 4 up to 66MBps and Multi Word Mode 5 up to 100MBps Bus-Mastering software drivers for all common multitasking operating systems Embedded USB Controller Build-in ICH4 supports total 6 USB 2.0/1.1 Ports Support USB 2.0 High-Speed Device @480 Mb/s Transfer Rates Optional USB adapter for additional USB2.0/1.1 ports On Board Super I/O Controller Two UARTs support serial ports One SPP/ECP/EPP parallel port One floppy disk drive connector supports up to 2.88MB Fast Ethernet Controller On board Realtek RTL8101L supports 10/100Mb Fast Ethernet Boot-Block Flash ROM Award system BIOS supports PnP, APM, DMI, ACPI, & Multi-device booting features Software Driver CD (Chipset Autodetect) Other Feature Back panel I/O connector One PS/2 mini-DIN mouse and keyboard port Two USB Ports and one RJ45 connector Two 9-pin D-SUB male Serial ports One 25-pin D-SUB female parallel port Audio Line-in, Line-out and Mic-in jacks One 15-pin D-SUB female game/MIDI port On board connector for external device Three 3x1 pin fan connectors Two 5x2 pin USB connectors for additional 4 USB2.0/1.1 ports 3x1 pin wake on LAN connector with housing 3x1 pin wake on Modem connector with housing Two 4x1 pin CD-in connectors 5x2 pin front side audio connector 9x2 pin front panel connector 17x2 pin floppy connector CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : CHAINTECH Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
