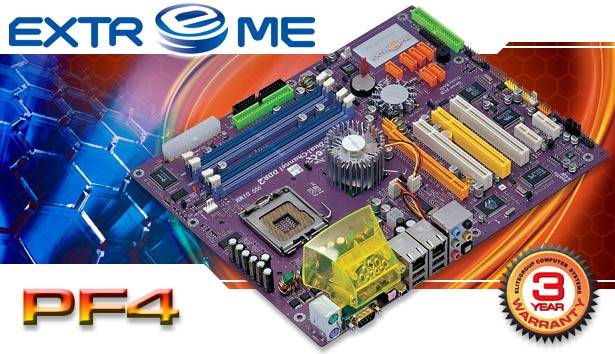

PF4 Extreme V1.0 - ECS Elitegroup
CPU LGA775 socket for Intel Pentium 4 / Prescott processor FSB 800/533 MHz Support Hyper-Threading Technology Chipset Intel® 915P & ICH6 North Bridge: Intel® 915P South Bridge: Intel® ICH6 Memory Dual-channel DDR2 memory architecture 4 x 240-pin DDR2 DIMM socket support up to 4 GB Support DDR533/400 1.8V DDR2 SDRAM Expansion Slot 1 x PCI Express x16 slot 2 x PCI Express x1 slots 3 x PCI slots Storage Supported by Intel ICH6 2x Ultra DMA100/66 devices 4 x Serial ATA devices Supported by SiS® 180 2 x Ultra DMA133/100/66 devices 2 x Serial ATA devices RAID0, RAID1& RAID 0+1 configuration IEEE 1394a VIA® VT6307, support 2x IEEE1394a ports Audio C-Media CMI9880 8-channel audio CODEC Compliant with Intel Azalia specification Dual LAN Marvell 88E8001 Gigabit LAN Controller Realtek 8100C 10/100 Mbps Fast Ethernet controller Rear Panel I/O 1 x PS/2 keyboard & PS/2 mouse connectors 4 x USB ports 2 x RJ45 LAN connectors 1 x 1394a connector (4-pin) 1 x SPDIF in connector 1 x Serial port (COM1) 1 x Audio port (Line-in,4x Line-out, Mic_in) Internal I/O Connectors and Headers 1 x 24-pin ATX Power Supply connector 1 x 4-pin ATX 12V connector 1 x FDD connector supports two 360K~2.88MB FDDs 2 x IDE connectors 6 x Serial ATA connectors 1 x IrDA for SIR header 1 x Speaker header 1 x 1394a header 2 x USB 2.0 header support additional 4 USB Ports 1 x Front panel switch/LED header 1 x Front panel audio header CD in header CPUFAN/NB_FAN/3x SYSFAN connectors System BIOS Award BIOS with 4Mb Flash ROM Supports Plug and Play 1.0A, APM 1.2, Muli Boot, DMI Supports ACPI revision 1.0 specification Form Factor ATX Size 305mm*244mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
