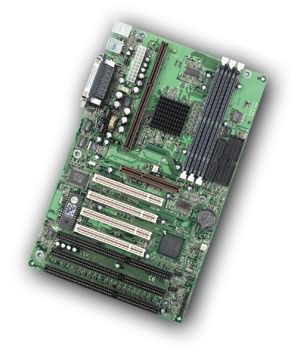

Magellan BX(P6BX-ATX)- EFA .jpg)
Processor: Intel Pentium II CPUs (up to 366Mhz),Pentium II 100Mhz FSB CPUs (up to 450Mhz)and Pentium® III (450/500MHz) Single Intel Celeron Processor (up to 400Mhz) 66Mhz, 75Mhz, 83Mhz, 100Mhz, 112Mhz speeds supported. BIOS: 1MB Award PCI BIOS; PnP Compliant Year 2000 Compliant Flash Memory EPROM Features Support Soft-Menu (BIOS jumperless) function Support CDROM, LS-120 and ZIP drive multi-boot function Support Mouse Break In Suspend Function Support Power Management, Plug and Play, DMI and Enhanced IDE Devices Supports PCI - to - PCI Bridge Intel 82440 BX AGP Chipset Winbond 83977 I/O chip Winbond 83781D System Environment Monitor Memory: (3) 168-pin DIMM Sockets 3.3V SDRAM DIMMs of the following types supported: Symmetric and Asymmetric DRAM, SDRAM and EDO (only for 66MHz FSB), SDRAM ECC (Error Checking and Correction), Buffered, Non-Buffered, SPD, EEPROM) Supports up to Maximum 384MB RAM Data Path 64 Bit Wide On-Board EIDE: Local Bus Enhanced Dual-Channel IDE Bus Master PCI IDE / Mode 4, Ultra DMA-33 Support. LBA Mode, Enhanced PIO Mode, 4HD Autodetect On-Board I/O: (2) 16550 Compatible High Speed Serial Ports (2) USB Ports (2) PnP DMA Channel Steering VIA BIOS (1) Floppy port maximum transfer rate up to 1M-bit/sec (1) STD/ECP/EPP Bi-directional parallel port (1) Standard PS/2 Keyboard/Mouse Connector Power Management: Compliant with EPA, APM 1. 2 and ACPI External Modem Ring On Watchdog Timer wake up Soft - off power control Sleeping state LED indicator Fan off in sleeping state Wake-on-LAN (WOL) Keyboard Password Power-On Expansion Slots: (1) AGP Slot (4) 32-Bit PCI slots (3) 16-Bit ISA slots Chipset: Intel i440BX PCIset Winbond 83977 I/O chip Winbond 83781D System Environment Monitor Built-in W83781D PC Environment Monitor: Monitors Temperature Monitors Voltages Monitors Fan Speed Options: (1) IrDA Compatible Infrared port Dimensions: ATX Form Factor 12" x 8" ( 30. 5 cm x 20. 3 cm ); 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EFA Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
