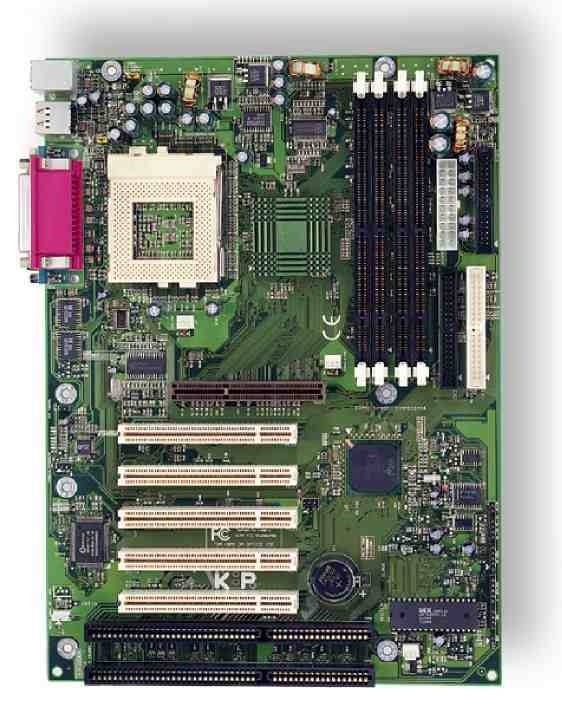

EP-3BXA EPOX
Supports Socket 370 Processors. Intel Celeron, Pentium III FC-PGA. Intel 440BX AGPset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard. Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. UltraDMA-33 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4. 66/100MHz Front Side Bus. 4x DIMM Slots for SDRAM. 1GB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 5 (32-bit) PCI, 2 ISA, & 1 AGP. AGP supports 1x and 2x modes. Extended Functions for Greater Value! Keyboard Power On (KBPO) - use keyboard to power on system. Wake On Lan (WOL) - use WOL compatible network card to power on system. SB-Link. Hardware sleep/resume. The EP-3BXA is based on the Intel 440BX chipset, an AGPset offering a 66MHz Bus Clock, supporting a single Socket 370 Celeron processor. The AGP Slot is compatible with any AGP compliant adapter providing an immediate doubling (or quadruple) in the maximu m available 2D/3D Graphics Bandwidth without reducing performance of other PCI cards. AGP Technology also allows Virtual Reality applications to use as much texture buffer space as they need without expensive card or hardware upgrades. Quick View...Model Chipset EP-BX3 Intel 82440BX EP-3BXA Intel 82440BX EP-61BXA-M Intel 82440BX EP-61LXA-M Intel 82440LX CPU Pentium II Pentium III Celeron Celeron Pentium II Pentium III Celeron Pentium II Celeron Cache ISA/PCI 2/5 + 1 AGP 2/5 + 1 AGP 3/4 + 1 AGP 3/4 + 1 AGP SIMM/DIMM 0/3 0/4 0/3 0/3 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX ATX ATX Others UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL, SB-LINK UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports SB-LINK ltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
