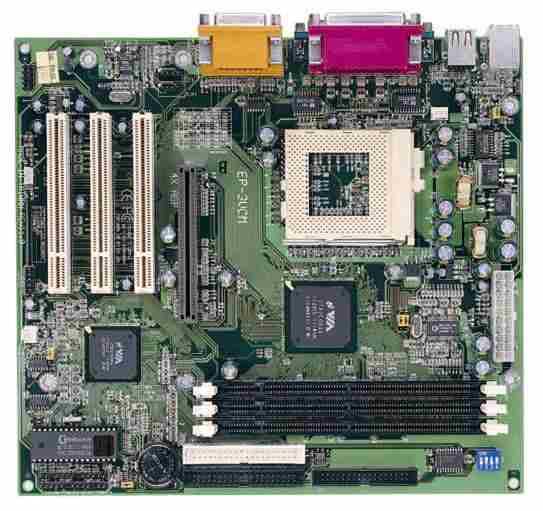

EP-3VCM+ EPOX
Supports Socket 370 Processors. Intel Celeron, Pentium III FC-PGA, & VIACyrix III. VIA Apollo Pro 133A AGPset. I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard, 2 more can be added as option! Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard Micro ATX form factor. 245mm x 220mm. UltraDMA-100 EIDE Controllers. (Up to 4 IDE devices). Backwards compatible with PIO mode 3/4 & UltraDMA-33/66. 66/100/133MHz Front Side Bus. 3x DIMM Slots for SDRAM. 768MB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 3 (32-bit) PCI & 1 AGP slots. 1x, 2x, & 4x AGP mode support. Onchip AC-97 Audio. Dual full duplex Direct Sounds channels. H/W SoundBlaster Pro DOS Legacy compatible. FM Synthesis for legacy compatibility. Supports game/MIDI port. Extended Functions for Greater Value! Keyboard Power On (KBPO) - use keyboard to power on system. Wake On Lan (WOL) - use WOL compatible network card to power on system. Unified System Diagnostic Manager (USDM) - monitor in Windows system temperatures, voltages, etc. Hardware monitoring functions provided by VIA VT82C686B chipset. Hardware sleep/resume. Designed with VIA's Apollo Pro 133A chipset, the EP-3VCM+ is a high quality motherboard built by EPoX in the industry standard micro ATX format. In addition to the AGP interface for high performance graphics, this board offers three industry standard PCI and one 4x compatible AGP expansion buses as well as many other advanced system and BIOS features. For full feature system designs, the Apollo Pro 133A is paired with the VIA VT82C686B super south bridge. Highly advanced, the EP-3VCM+ combines integrated AC-97 audio support for SoundBlaster Pro and FM synthesis legacy audio, super I/O, and hardware moni toring capabilities. Two bus mastering ATA 33/66/100 EIDE ports are provided plus a floppy disk port supporting two drives of any industry standard capacity including 2.88MB as well as 1.44MB and lower capacity types. In addition an IrDa infrared port allows the connection of remote devices. Quick View...Model Chipset EP-3VBA2 & EP-3VCA VIA Apollo Pro 133A EP-3VCM VIA Apollo Pro 133A EP-3VCM+ VIA Apollo Pro 133A EP-6VBA2 VIA Apollo Pro 133a CPU Celeron FC-PGA Pentium III, FC-PGA Celeron, VIACyrix III FC-PGA Pentium III, FC-PGA Celeron, VIACyrix III Pentium II Pentium III Celeron Cache ISA/PCI 1/5 + 1 AGP + 1 AMR 0/3 + 1 AGP 0/3 + 1 AGP 1/5 + 1 AGP + 1 AMR SIMM/DIMM 0/3 0/3 0/3 0/3 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX ATX ATX Others UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio, AGP 4X mode UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio, AGP 4X mode UltraDMA-100/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio, AGP 4X mode UltraDMA-66/ACPI** 2S/1P/USB IDE/FDD ports USDM, WOL, AC97 audio, AGP 4X mode. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
