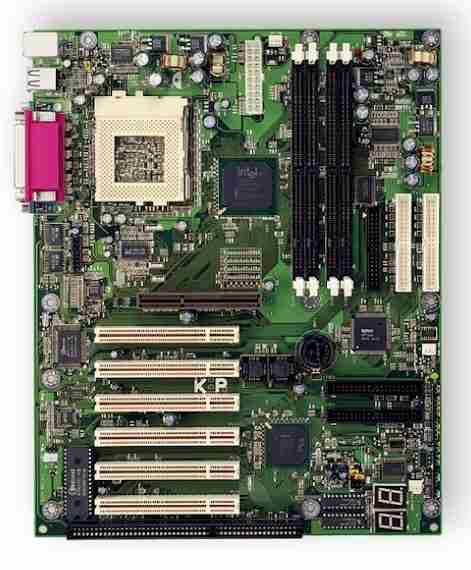

EP-BX7+100 EPOX
Supports Socket 370 Processors. Intel CeleronTM, Pentium® III FC-PGA. Intel 440BX AGPset. Winbond Super Multi I/O Controller. 1 Floppy drive controller, 1 Parallel port (EPP, ECP), 2 Serial ports. USB. 2 supported onboard. 5 support max (optional). Award PnP BIOS. Flash upgradeable. 120MB ATAPI floppy drive and ZIP support! Standard ATX form factor. 305mm x 240mm UltraDMA EIDE Controllers. PCI Bus IDE Port/UDMA33 x 2 (Up to 4 Devices) Extra PCI IDE Port by HP370/UDMA-100 & Raid x 2 (Up to 4 Devices) 66/100MHz Front Side Bus. 4x DIMM Slots for PC100 SDRAM. 1GB max. supported. PS/2 connectors. 1 PS/2 mouse, 1 PS/2 keyboard. 6 (32-bit) PCI, 1 ISA, & 1 AGP. AGP supports 1x and 2x modes. Extended Functions for Greater Value! Supports exclusive USDM (Unified System Diagnostic Manager) and Hardware Monitoring Function by W83782D Supports exclusive KBPO (KeyBoard Power On) Supports CPU Vcore / VIO and Clock (1MHz Linear Stepping) Setting Supports AGP Bus 1/1 & 2/3 ratio FSB Setting Supports SB-Link and Wake-On-LAN functions Onboard POST diagnostic function. Winbond W83977EF-AW Ultra I/O integrated with K/B, mouse, FDD, Parallel and Serial, Fast IR and Power-ON controllers The EP-BX7+100 is based on the Intel 440BX chipset, an AGPset offering a 100MHz Bus Clock, supporting a single Socket 370 (FC-PGA370) Pentium III. The AGP Slot is compatible with any AGP compliant adapter providing an immediate doubling (or quadruple) in the maximum available 2D/3D Graphics Bandwidth without reducing performance of other PCI cards. AGP Technology also allows Virtual Reality applications to use as much texture buffer space as they need without expensive card or hardware upgrades. Also included is the IDE-RAID HPT370 controller. Just as its name implies, the IDE-RAID HPT370 supports RAID 0, 1 and 0+1. This is ideal for small businesses that need to mirror their servers - striping large capacity >27GB hard disk is a much cheaper solu tion than SCSI RAID for A/V. The UDMA 100 protocol has broken the longstanding UDMA 33/66 standard for incredible speed. The bundled feature USDM, another exclusive innovation from EPoX and supported by the EP-BX7+100, provides you the important real-time information to monitor and control your system for safer and more stable computing in mission-critical Enterprise, Intern et and Commerce applications. "The Epox BX7+100 motherboard happily surprised us in a couple aspects, the first being the nice overclockability and secondly the great performance of this board... Stability and compatibility is fantastic. We give the Epox EP-BX7+100 a rating of 8/10!" http://tweaktown.com/reviews/epox_bx7+100/ "This is a great motherboard for the overclocker. It ran very smooth and stable using a variety of CPUs and settings. ... Like always it is stable as solid granite. The features on this motherboard, like the RAID controller, are very cool and make system down time very short. ... It may be the best overclocking motherboard of its kind." http://www.motherboards.org/articlesd.html?articleid=35&pagenum=1 Quick View...Model Chipset EP-BX6 Intel 82440BX EP-BX7 Intel 82440BX EP-BX7+ Intel 82440BX EP-BX7+100 Intel 82440BX CPU Pentium II Pentium III Celeron Pentium III Celeron Pentium III Celeron Pentium III Celeron ISA/PCI 1/6 + 1 AGP 1/6 + 1 AGP 1/6 + 1 AGP 1/6 + 1 AGP SIMM/DIMM 0/3 0/4 0/4 0/4 BIOS Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Award/Flash EPROM Switching Regulator Yes Yes Yes Yes Form Factor ATX ATX ATX ATX Others UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL, SB-LINK, POST UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL, SB-LINK, POST UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL, SB-LINK, POST, IDE RAID/UDMA66 UltraDMA-33/ACPI** 2S/1P/USB IDE/FDD ports KBPO, USDM, WOL, SB-LINK, POST, IDE RAID/UDMA100 CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : EPOX Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
