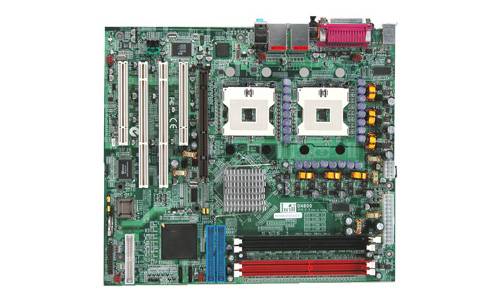

DH800 - Iwill
Processor Dual/single Intel Xeon (socket 604) processors Intel Xeon processors at 800/533 MHz System Bus 2nd set VRD to support next generation Intel Xeon processors Support 2MB L3 cache Intel Xeon processors Chipset Intel i875P MCH Intel Hance Rapids ICH Winbond W83627THF Super I/O System Memory Support DDR400/333/266 memory modules Support unbuffered memory only Support ECC/non-ECC memory modules Support 128Mb/256Mb/512Mb technology memory Maximum memory capacity up to 4GB Expansion Slots 2x PCI-X 64/66 slots 2x PCI 32/33slots PCI 2.1/2.2 Compliant 1x AGP Pro/8X slot / AGP Pro50 / AGP 3.0 specification Audio 6 Channel AC’97 CODEC Analog Device AD1980 One audio connector at rear panel to support LINE IN/LINE OUT/MIC IN Support MIC IN/LINE OUT for front panel Rear-out, Center-out and S/PDIF-out One 4-pin CD-ROM Audio In header One 4-pin AUX header Enable/Disable by one option in the BIOS USB2.0 4x USB 2.0 external port on the back panel IEEE 1394 TI TSB43AB22A IEEE-1394 controller One IEEE-1394 connector stack on rear USB port to support external port One pin header to support external IEEE-1394 Ethernet Intel Kenai II CSA for GbE LAN 1x RJ-45 One 3-pin Wake on LAN connector Enable/Disable by option in the BIOS Serial ATA Dual SATA ports w/ Adaptec Host RAID IDE Dual Ultra DMA 133/100/66/33 IDE Ports Support ATAPI IDE CD-ROM, ZIP-100 & LS-120 I/O Interface 1x Floppy Controller for up to two drives 1x UART connector 1x 25pin ECP/EPP Parallel Port 1x PS/2 Keyboard 1x PS/2 Mouse 1x Internal Smbus connector 1x Internal WOM connector BIOS AMI BIOS Flash-write Protection for BIOS Support ACPI S1, S3 Auto configuration for IDE hard disk type Multiple boot options System Management Winbond hardware monitor 2x 3-pin CPU Fan headers with speed control 3x 3-pin Chassis Fan headers with speed control 3x Temperature sensor 8x Voltage monitoring (Vcore, +1.5V, +2.5V, +3.3V, +5V, +12V, Battery, 5VSTB) 1x 3-pin Chassis intrusion header Power EPS12V PSU Dual power connectors Form Factor ATX (12”x10.5”) Stacked PS/2 Mouse/Keyboard ports Two stacked RJ-45 with LED on dual USB2.0 ports Stacked Parallel ports on one Serial, real out/center out/SPDIF out CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : IWILL Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
