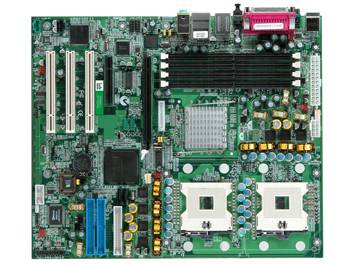

DN800-L - Iwill
Processor Intel® Dual Xeon Socket 604 CPUs Supports 800MHz FSB Chipset Intel E7525 Chipset MCH Intel Hance Rapids Winbond 83627 THF System Memory 4 DIMMs for 240-pin DDR2 DIMM sockets Uses Registered DDR2 with ECC or Non-ECC memory Supports total system memory size of up to 8GB LAN Intel GbE Controller One RJ-45 connectors for GbE Support PME USB2.0 4 x external USB 2.0 ports by NEC USB controller 4 x internal USB 2.0 headers by HR IEEE 1394 3 x IEEE-1394 ports ( 1x external port, 2x internal headers) Serial ATA 2 Serial ATA ports Support Adaptec Host RAID Support hot swap Internal I/O connector 1 x UART by 9-pin header 1 x Smbus connector 1 x WOL connector 1 x IR connector 1 x 34-pin Floppy Connector 4-pin CD-In and Aux-In audio input connector Expansion Slots One PCI Express x16 slot One PCI Express x8 slot Three PCI 32/33 slots IDE 2x 40-pin IDE connectors, supports up to four (4) Enhanced IDE devices Dual Channel Master Mode Ultra DMA 100/66/33 Rear Panel I/O PS/2 mouse and keyboard connectors 1 x UART 16550 serial port (COM1) 1 x 25-pin parallel port with ECP/EPP support 4 x USB 2.0 ports 1 x Gigabit Ethernet LAN RJ-45 port 1 x IEEE-1394 port 1 x S/PDIF Out Rear Out and Center Out Audio Phone Jacks - Line Out, Mic In, Line-In BIOS AMI BIOS Flash write protection by BIOS and one jumper ACPI 1.1 APM 1.2 Support ACPI S1 Support ASF2.0 System Management Hardware Monitor control by ADT-7460 Fan speed control method: DC FAN Support AC power failure Form Factor ATX form factor 12''x10'' EPS 12V power connectors (24 pin + 8 pin) Qualified Chassis IWT-TJ03 S800-N Tower 6 x external 5.25" drive bays 6 x internal 3.5 drive bays Third party heatsink: Thermaltake A1964 3U Active cooler Screw+Spring Coolermaster E1U-NPFCS-04 1U Passive cooler Screw+Spring E2U-N7RCS-04 2U Active cooler Screw+Spring E2U-NPJCS-04 2U Passive cooler Screw+Spring E3W-N7RSS-04 3U Active cooler Screw+Spring E3W-NPTXS-04 3U Passive cooler Screw+Spring CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : IWILL Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
