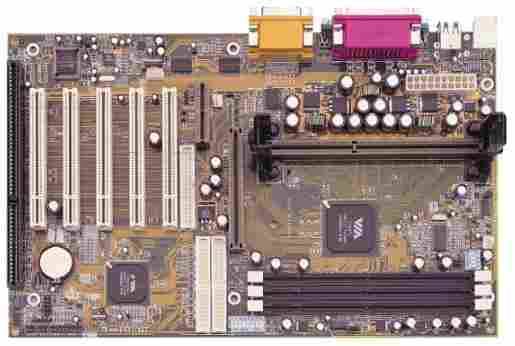

771AS - Jetway
FEATURES Support SlotA for AMD-K7 or AMD AthlonTM uniproccessor at a 100MHz front Side bus with double data rate (200MHz) VIA Apollo KX133(VT8371) System controller and VT82C686A PCI to ISA bridge On Board Hardware PCI Sound Chip Support 3 X 168 Pin DIMM Sockets From 8Mbyte to 1.5GByte Main Memory Support PCHEALTH MONITOR Support Ultra DMA 33 / 66 Mode Meets PC 99 Requirements Support USB Controller & PS/2 Mouse , Standard IR (infrared) Function Provide extra " three-wire" fans connectors Jumpless Design (BIOS Setup CPU Bus Frequency) Y2K Compliant ACPI Supporting For OS Directed Power Management BIOS Auto Detect CPU voltage Support Add CPU Voltage Select in BIOS setup.From +0.05V ~ +0.3V(one step 0.05V) Moden Ring remote wake up ATX power supply connector for Software Suspend & Show Down power off Wake On LAN RTC Alarm Wake up SPECIFICATION Processor Support AMD-K7 or AMD AthlonTM uniproccessor at a 100MHz front Side bus with double data rate Chipset VIA Apollo KX133(VT8371) System controller and VT82C686A PCI to ISA bridge CPU Bus Frequency BIOS Adjust CPU/PCI Bus Frequence , Include 100/100MHZ , 105/35MHZ , 112/37MHZ Expansion Slot One AMR Slot One 16-bit ISA Bus Slots Five 32-bit PCI Bus Master slots System Memory Support 64 bit DRAM memory Interface (66/100/133MHz) Support 3 Banks of SDRAM from 8Mbyte to 1.5GByte Main Memory Support SDRAM & Virtual Channel SDRAM (VC SDRAM) 3 X 168-pins DIMM Scockets Support ECC or EC AGP SLOT Support 4X AGP VGA Mode for 266MHz of AD and SBA signaling Pipelined split transaction long-burst transfers up to 1GB/sec On Board IDE Support 2 X IDE Connectors for up to 4 IDE Drives Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s Support UTRA DMA-33/66 Bus Master IDE, Provide faster transfer rate up to 33M/66M Bytes/s Support LS-120 / ZIP Device On Board Hardware PCI sound chip Fully Compliant AC97 Analog I/O Component 48-Terminal TQFP package Multibit Converter Architecture for inproved S/N ratio greater than 90dB 16-Bit Stereo Full-Duplex Codec 4 Analog Line-Level Stereo Input High Quality CD Input With Ground Sense Stereo Line Level Output Sound Driver for Windows 95/98 , Windows 2000 & Windows NT4.0 , Media Rack On Board Ultra I/O 2 X Serial Ports (16550 Fast UART Compatible) 1 X Parallel Port (EPP and ECP capabilities) 1 X Floppy Disk Connector (Supports 2 Floppy Drivers) 1 X PS2 Mouse Connector 1 X Keybord Cnnector 2 X Three Wire CPU FAN Connector 1 X LINE IN / LINE OUT Connector 1 X Game Port Connector (Support Two Joysticks) 2 X Analog Audio CD Music line Connectors (different connector) 1 X Standard IR Connector (Infrared) VIA Health Monitor VIA Health Monitor to Track CPU Temperature, Voltage, Fan speed , Monitoring your Computer Driver For Win95/98 and NT4.0 On Board USB 4 X USB Ports Connector Support USB Keyboard & USB Mouse Power Saving ACPI/APM Power Management Moden Ring remote wake up RTC Alarm Wake up CPU Fan Auto-Stopping in Suspend Mode Support Software Suspend & Power off (Windows95 or Windows98) Wake on LAN For OS Support Power Button Ride (Instant off or Delay 4 second power off) Power Supply Support 20-pin ATX power supply (ATX-PW) BIOS Award Plug and Play and Green Function, Full screen logo support 2MByte Flash ROM Dimension ATX Form Factor with 30.5cm X 19cm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : JETWAY Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
