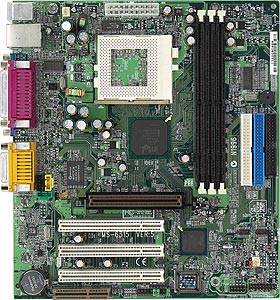

815EM Pro (MS-6315)- MicroStar
CPU Support Socket 370 for Intel® Pentium® III (FC-PGA)/Celeron™ Processor. Supports 500MHz - 866MHz. Chipset Intel® 815E chipset. (North-Bridge 544 BGA) AGP 4x/2x slot. Supports 66/100/133MHz FSB Intel® chipset. (South-Bridge 241 BGA) AC97 Controller Integrated. 2 full IDE channels, up to ATA100. Integrated 10/100 Ethernet. Low pin count interface for SIO. 4 USB ports. FSB 66/100/133 MHz Main Memory Two 168-pin DIMM sockets. Supports 32 to 512MB PC100/PC133 SDRAM using 16/64/128/256Mbit technology. Slots One CNR (Communication Network Riser). One AGP v2.0, 4x slot Three PCI 2.2 32-bit Master PCI bus slots. Supports 3.3v/5v PCI bus interface. On-Board IDE An IDE controller on the VIA VT8233 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation modes. Can connect up to four IDE devices. Audio ICH2 chip integrated. Supports 4 Channel Audio. Video GMCH chip integrated. 2D/3D Graphics. Intel® D.V.M. Technology On-Board Peripherals 1 Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes. 2 Serial ports (COM A + COM B), 1 Parallel port supports SPP/EPP/ECP mode. 1 Parallel port supports SPP/EPP/ECP mode. 1 Audio/Game port. Network ICH2 integrated LAN controller. Intel® 82562 ET/EM. ACPI and APM supported (EM). Wake-On-LAN and WFM 2.0 supported (ET/EM). Backward compatible software with 82557, 82558, and 82559 (ET/EM). Support basic AOL functionalit (EM). BIOS The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications. Dimension Micro Form Factor. Mounting 6 mounting holes. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MICROSTAR Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
