R651 SYSTEM BOARD - M Technology

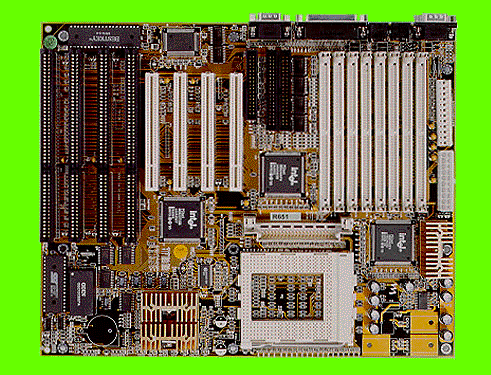

M-TECHNOLOGY R651 SYSTEM BOARD -------------------------------------------------------------------------------- (click for larger image) FEATURE HIGHLIGHTS Supports Pentium PRO Processors ATX Form Factor Size Supports 256K/512K L2 Cache Supports EDO Memory Support Based on Intel 440FX PCIset The M Technology R651 provides the latest enhancements in system board technology with Intel Pentium PRO Microprocessor. Based on the Intel FX PCIset, the board provides high PCI-to-memory bandwith for today's demanding applications. The R651 also feature Specifications: Processor: Single ZIF socket 8 for Pentium PRO processors CPU Clock Select: Frequency synthesizer chip for easy CPU clock selection Expansion Bus: Four 32-bit PCI slots Four 16-bit ISA slots Memory: Eight 32/36-bit 72-pin SIMM sockets to accomodate: 1M x 32/36 (4MB) 2M x 32/36 (8MB) 4M x 32/36 (16MB) 8M x 32/36 (32MB) Maximum Memory: 1GB Supports EDO memory Cache: 32K on-chip Level 1 (Write Back) Intel COAST 1.2 cache socket supports asynchronous and 256K/512K Level 2 cache Chip Sets: Intel 82437VX, 82438VX, 82371SB Chipset PCI (Local Bus) IDE: Mode 4 Enhanced IDE with Bus mastering Two channel 40-pin enhanced IDE connectors (Primary and Secondary IDE) Auto detection of add-in IDE board Multiple sector transfer support Floppy Drive Interface: Supports 360K, 1.2, 1.44 or 2.88MB formats Auto detection of add-in floppy controllers Serial/Parallel Ports: 2 on-board 16550 compatible serial ports 1 on-board parallel port with ECP and EPP support Supports 2 Universal Serial Board ports (Host/Hub) BIOS: Award Flash BIOS PCI auto configuration "Plug and Play" Ready Auto detection of memory SIZE Auto detection of EDO memory Auto configuration of IDE hard disk types Soft Power Down Form Factor: ATX Form Factor (12" x 9.6") Four layer board Documentation: Complete User Installation Manual Quality Commitment: The continuously evolving technology of the computer industry demands the highest level of quality, reliability and compatibility. M Technology is committed to providing the industry's state-of-the-art manufacturing, testing, and customer support. The R651 is extensively tested for compatibility under various operating systems, including: OS/2TM Warp SCO® UNIX ODT MS-DOSTM v 5.0, 6.2 NOVELL WindowsTM v 3.1, 95 & NTTM PC-DOS CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : M Technology MTechnology M-Technology Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
