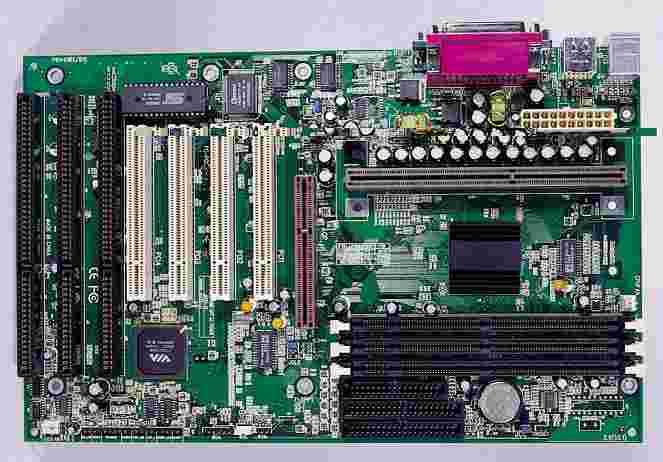

Advance5-133E - QDI
CPU Support PII, PIII 500/533EB/533B/550E/600/ 600E/600EB/650/667/700/733/750MHz and Celeron 400/433/466/500/533(66MHz). Bus Speed 66/100MHz 133/144/155MHz Chipset VIA Apollo Pro 133 Chipset VT82C693A North Bridge can support 66/100/133MHz CPU Front Side Bus VIA VT82C596B South Bridge supporting: 1.Independent timing of up to 4 drives 2.PIO mode 4 transfers up to 14MB/sec 3.Support ATA 33/66 synchronous DMA mode transfers up to 66MB/Sec 4. Integrated 16x32bit buffer for IDE PCI Burst Transfers 5.Two USB ports System Memory Three 168pin 3.3V unbuffered 66/100/133MHz DIMM socket Support 8MB to 768MB SDRAM memory BIOS Licensed advanced AWARD BIOS, 2MBit flash Rom, Plug and Play ready Full supports for ACPI specification and OS directed power management Support SpeedEasy, LogoEasy, ManageEasy, BIOS-ProtectEasy and RecoveryEasy. I/O Feature Winbond W83977 EF/ I/O chip All I/O ports can be Enabled/Disabled by BIOS setup One floppy port supports up to two 3.5’’ or 5.25’’ floppy drivers (360K/720K/1.2M/1.44M/2.88M) Supports LS-120 floppy disk driver and ZIP drive Two high speed 16550 fast compatible UARTs(COM1/COM2/COM3/COM4 selectable) One enhanced parallel port(SPP/EPP/ECP) IrDA port support up to 115.2KB/Sec transfer rate Bus Type 4 PCI local bus slots 3 ISA slots 1 AGP slot Advanced Feature On board LM80 supports system monitoring(monitor system voltage & temperature, FAN's speed )(manufacturing option) Supports both internal and external modem ring power-on, key-borad power-on Support WOL. Trend ChipAway Virus on guard Board Size ATX 305x193mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
