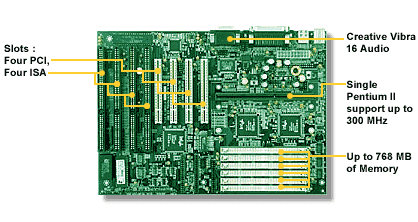

Tahoe-A ATX - TYAN motherboard
Processor Pentium II 233-300 MHz or Pentium Pro *** 150-200 MHz VRM Component installed on board One Slot 1 Connectors (SEC) Processor speeds: CPU compatibility chart Chipset Intel 440FX (NATOMA) System Memory Up to 768MB On Board Six 72-pin SIMM Sockets EDO or FPM DRAM Support ECC and Parity Support 3 memory banks total Expansion Slots Four 32-bit PCI Bus Mastering Slots Four 16-bit ISA Slots One Shared PCI/ISA Slot - 7 usable Integrated Audio** Creative Labs Vibra 16 Wave-table Upgradeable This is a manufacturing option Disk Drive & System I/O Two PCI Bus-Master enhanced IDE Ports 4 HDD + EIDE CD-ROM Support Bus-Mastering Mode 2 (Up to 22MB/Sec DTR) PIO Mode 3 & 4 (Up to 17MB/SEC DTR) Two Floppy Drive Support (Up to 2.88MB) Two 16550 High Speed Serial Ports One ECP/EPP High Speed Parallel Port 2 USB Ports Rev 1.2 One IR Port PS/2 Mouse port using IRQ 12 BIOS Award or AMI BIOS Green PC Compatible Microsoft Plug and Play Ready Form Factor ATX (8.6" x 12.00") Type "V" I/O Shield (Intel Venus Compatible) Warranty 2 Year Manufacturer's Warranty Specifications may change without notice Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
