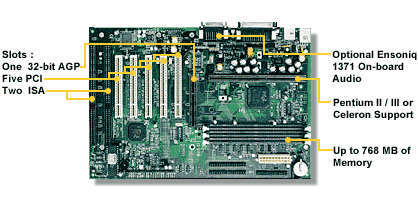

Tsunami ATX - TYAN motherboard
Processor Single Pentium II / III Celeron CPU supported One Slot 1 Connector (SEC) On-board CPU Fan Headers On-board Case Fan Headers VRM component installed on board Processor speeds: CPU compatibility chart Main Memory Up to 768MB SDRAM Memory Support Synchronous DRAM W/SPD SDRAM + ECC Three 168-pin DIMM Sockets 100 MHz SDRAM support [ Compatiblity List ] Hardware Monitoring Intel 440BX (100 MHz AGP set) Latest Generation Pentium II Chipset National "309" Super I/O chipset LM79/LM75 control chips (optional) Expansion Slots Five 32-bit PCI Bus Mastering Slots Two 16-bit ISA Slots One 32-bit AGP Slot One Shared PCI/ISA Slot Disk Drive & System I/O Two UltraDMA/33 PCI Bus-Master EIDE Ports Supports EIDE CD-ROMs Bus-Mastering Mode 2 (Up to 22MB/sec DTR) PIO Mode 3 & 4 (Up to 17MB/sec DTR) Two Floppy Drive Support (Up to 2.88MB) Japanese Mode 3 Floppy Support Two ATX Style 16550 High Speed Serial Ports One ATX Style ECP/EPP High Speed Parallel Port 2 ATX USB Ports Rev 1.2 One IR (InfraRed) Port One ATX PS/2 Mouse Port One ATX PS/2 Keyboard Port Integrated Audio (optional) Ensoniq 1371 PCI Wavetable audio chip AC97 codec / One ATX Game port ATX Line in, MIC, and Speaker ports Voltage and Power ATX Power Supply Connector +12V Power Source for DC-FAN 3.3V DRAM Support Utilizes GTL+ Bus, Reducing Power Consumption and EMI Power Recovery After Interrupt Feature Wake-on-LAN Feature Header (3-pin) *** BIOS AMI Plug 'n' Play 2Mb flash BIOS Standard Deep Green / Energy Star / PC97 compliant Yellow LED for Sleep mode Year 2000 compliant Form Factor ATX (8.3" x 12.0") Double Row ATX Connectors Type "V" I/O Shield (Intel Venus Compatible) Warranty 3 Year Manufacturer's Warranty Specifications may change without notice Package List - Tsunami ATX motherboard / User's manual - 40-pin IDE & 34-pin floppy cable pack - CPU Retention module - Driver disk (optional) - System Management & Driver CD with Ensoniq AudioPCI manual & installation instructions (1846SLA only) Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
